| Resolution | 1920 x 1920 | Touch Panel | Optional |
| Brightness | 500 nits | Loudspeaker | Optional |
| Contrast Ratio | 3000 : 1 | Memory | 2+8GB |
| Aspect Ratio | 1:1 | OS | Android |
Display Specifications

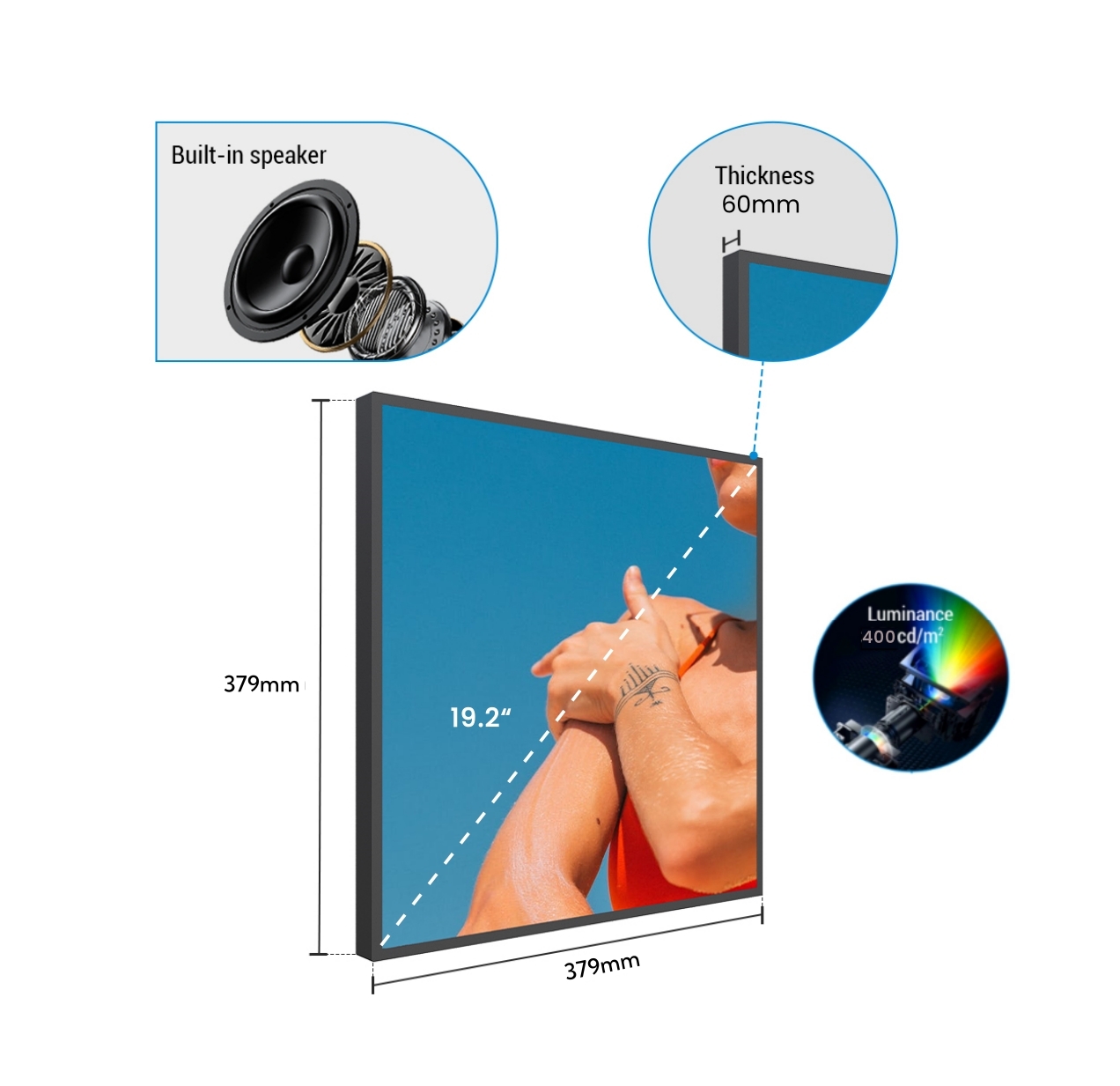

The collection gives a couple of display screen sizes, with diagonal measurements starting from 17" to 52.3". Notable fashions encompass the 19.2", 22", and 33.2" screens (catalogue products), which stand out for his or her showed parameters. Screen dimensions range significantly: for example, the 17" version measures 337.92×270.34 mm (13.3"×10.64"), at the same time as the 52.3" version reaches 940×940 mm (37.01"×37.01").
Resolution and factor ratios vary to fit exclusive uses. The 17" version capabilities a 1280×1024 decision with a 5:4 ratio, perfect for legacy systems, at the same time as large screens (19.2" to 52.3") ordinarily undertake 1:1 ratios (e.g., 950×950 for 19.2", 1920×1920 for 22") or 8:9 (27.9" at 1920×2160), making sure rectangular or near-rectangular visuals for graphics, signage, or business applications.
Brightness stages variety from 220/300 nits (17") to 500 nits (22", 27.9", 33.2"), at the same time as assessment ratios span 1000:1 to 3000:1, handing over brilliant imagery. All fashions guide 16.7 million colors,enhancing visual clarity.
Functional Features
Touch & Connectivity: Touch panels are optionally available throughout the collection. Interfaces consist of 2×USB, RJ45, and WiFi as standard; large fashions (27.9" and above) upload Bluetooth, with optionally available HDMI and 4G aid for accelerated connectivity.
Audio & Control: Loudspeakers are optionally available, and all fashions include far off manage capability for ease of operation.
Customization: Exterior hues are to be had in black, with custom hues supported to suit branding or surroundings needs.
Hardware & Power
Running on Android OS, the collection gives various reminiscence configurations: 1+32 GB for 17", 19.2", and a few large fashions, whilst the 22" capabilities 2+8 GB. Power inputs consist of DC12V 5A for smaller displays and AC100~240V for 39.4", 45.4", and 52.3" fashions. Average strength intake levels from ≤30W (19.2") to ≤150W (52.3"), with standby strength ≤3W throughout all fashions, making sure electricity efficiency.
Dimensions & Packaging

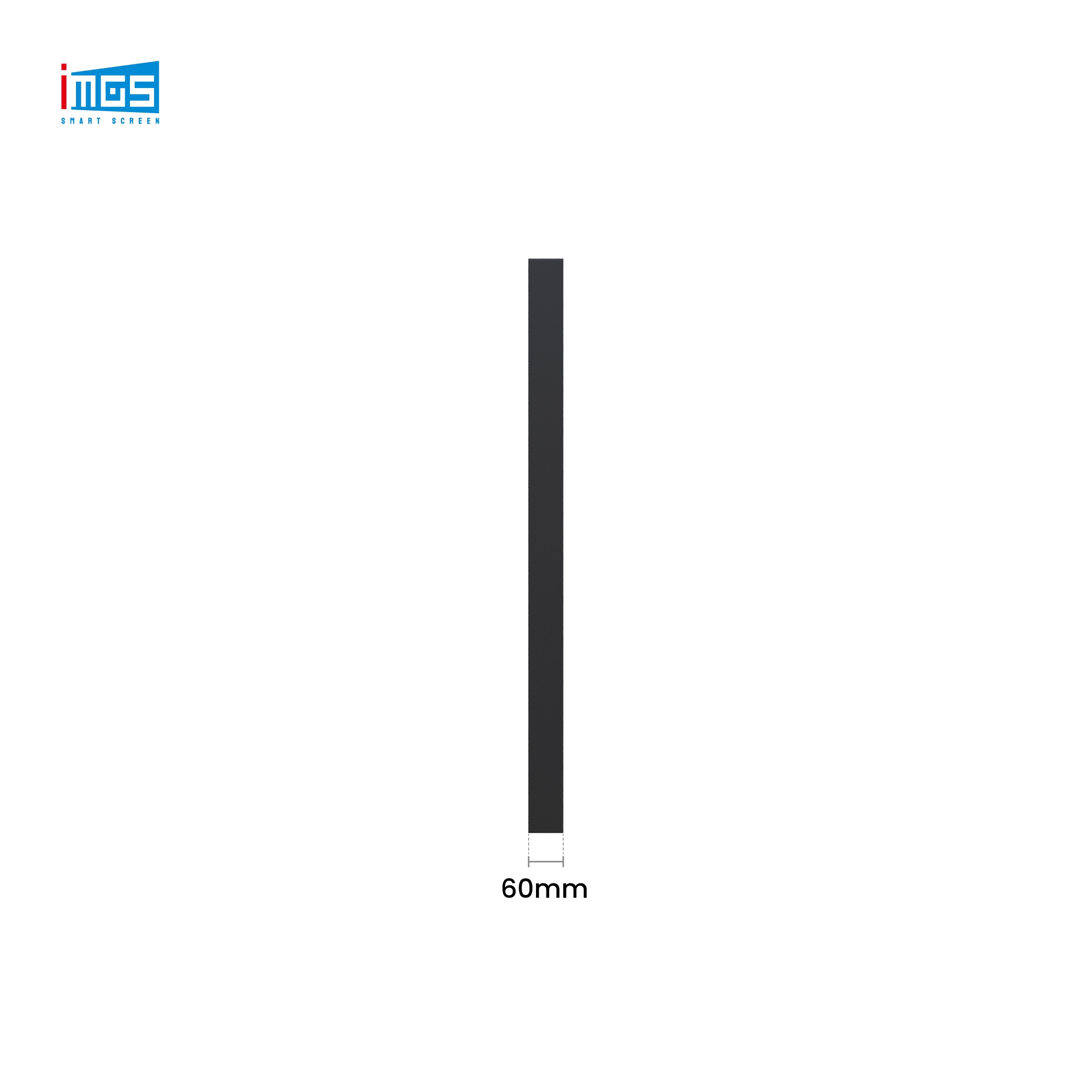

Overall dimensions range significantly: the 17"version is 373×311×56.2 mm (14.69"×12.24"×2"), at the same time as the 52.3"version measures 974×974×60 mm (38.38"×38.38"×2.36"). Packaging weights and sizes additionally differ: the 17"version has a internet weight of 3.7 kg and a package deal length of 440×395×a hundred and ten mm, at the same time as the 52.3" version’s internet weight is unspecified, with a package deal length of 1054×1054×140 mm.
Tempered glass is to be had for fashions like 19.2", 22", 29.6", 39.4", 45.4", and 52.3", improving sturdiness and scratch resistance.
Note: Technical parameters are subject to the latest product updates. Contact our sales team for customization options and detailed specifications.

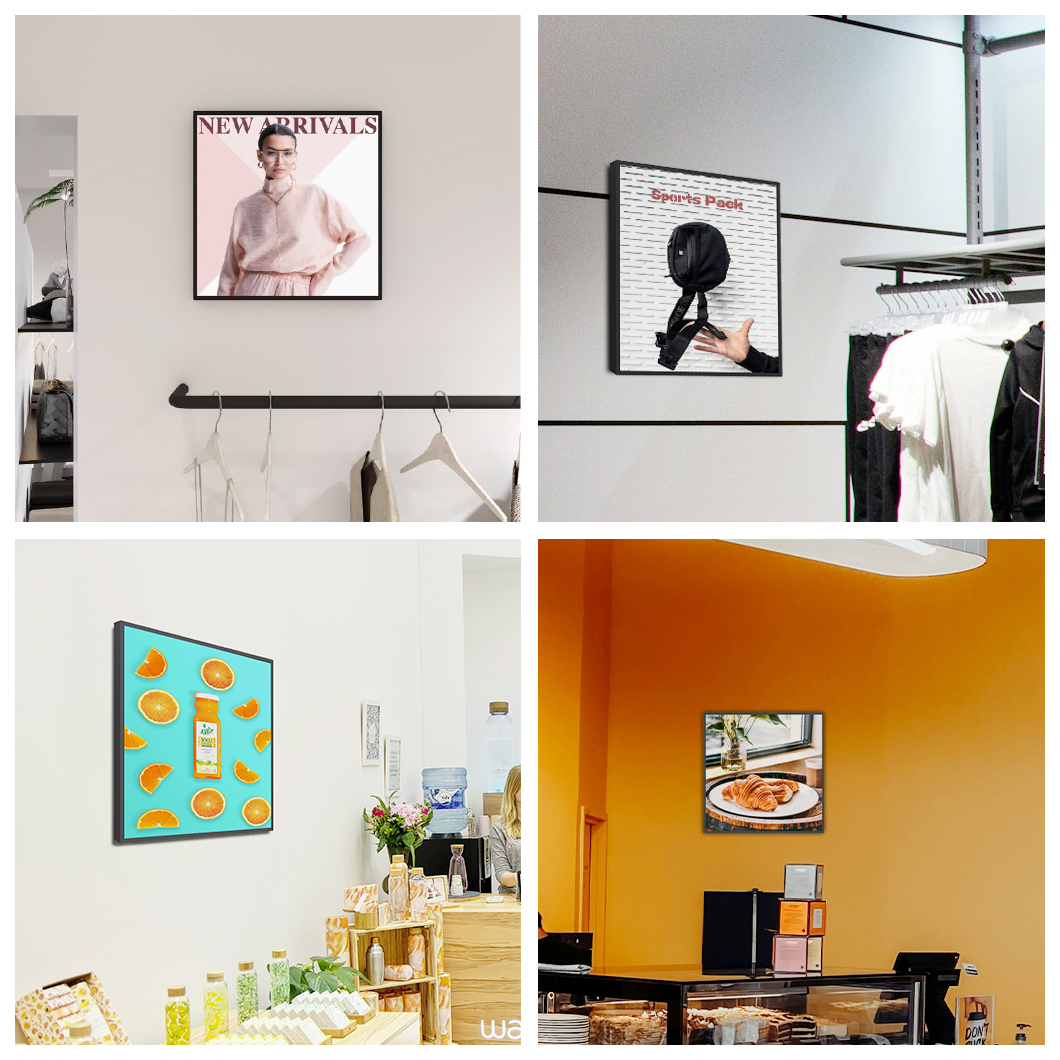

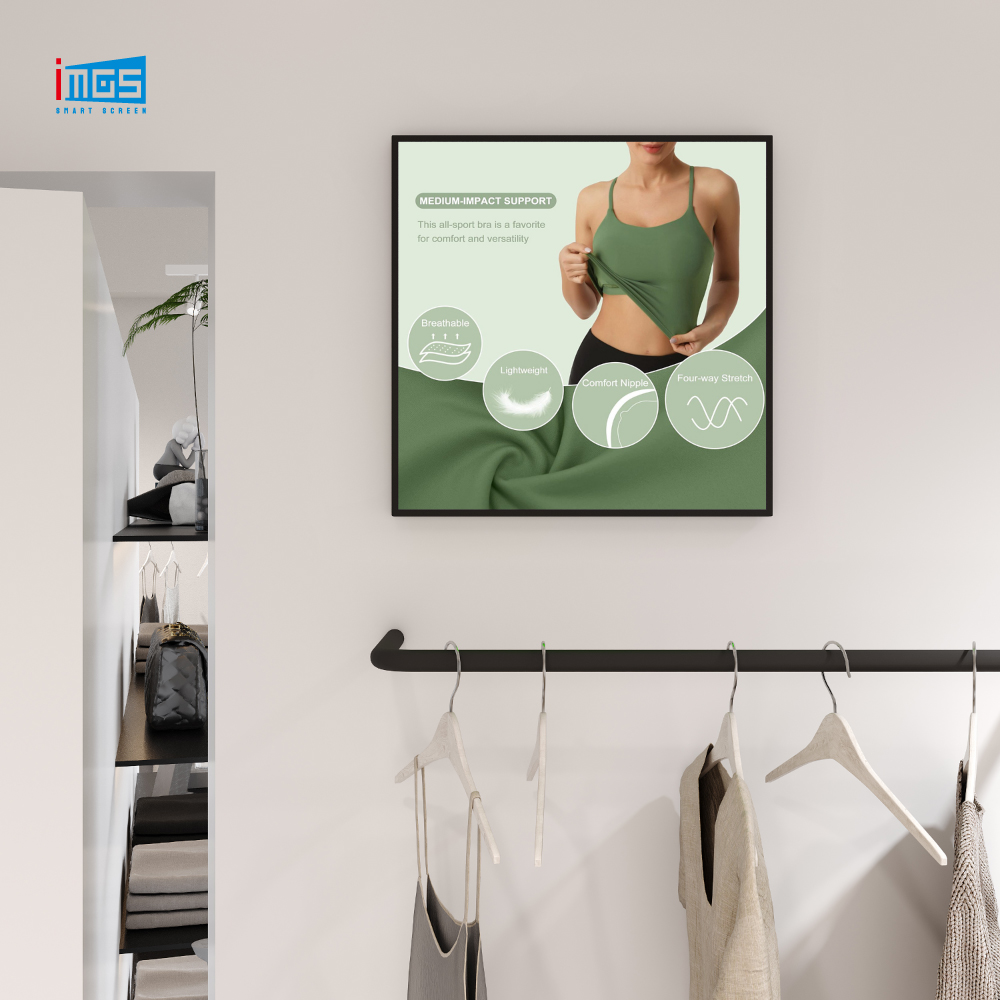

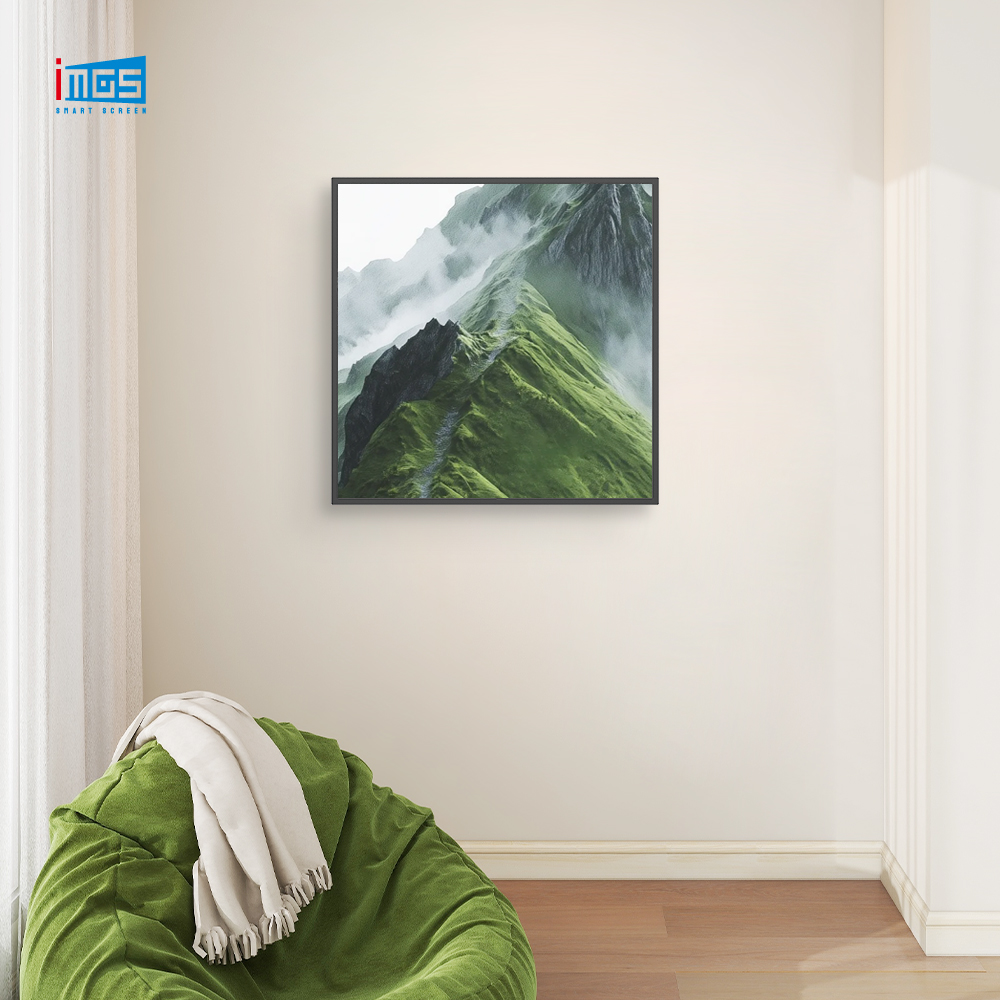

Square wall-mounted AD screens are ideal for retail stores,
where they display product info and promotions on walls.
In restaurants, they show menus and daily specials.
In hotels, they display room info and services. In offices, they present company news or meeting schedules.
Their compact shape and eye-catching display make them suitable for various settings.
